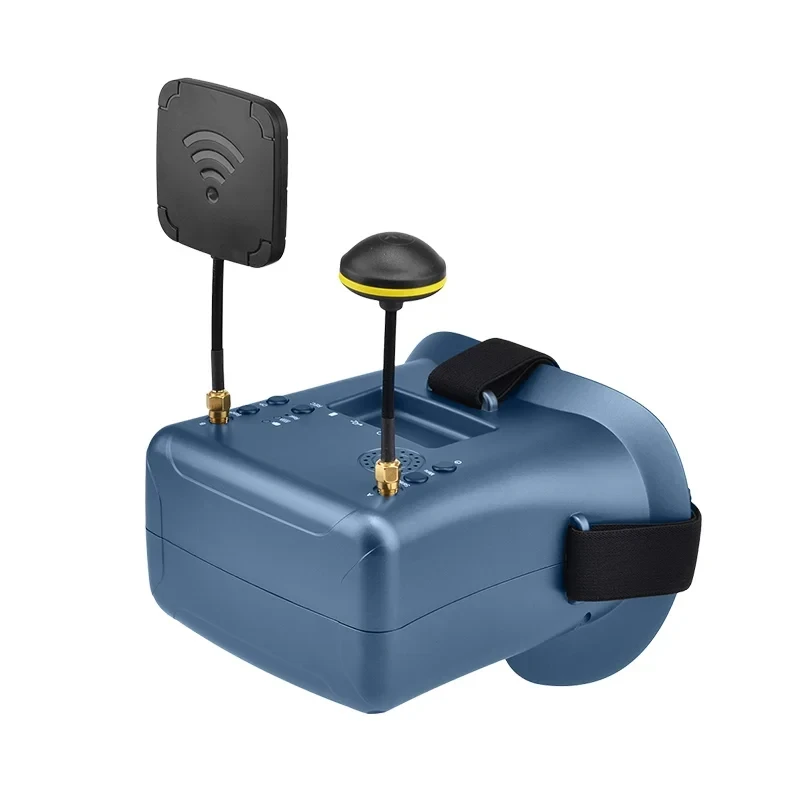

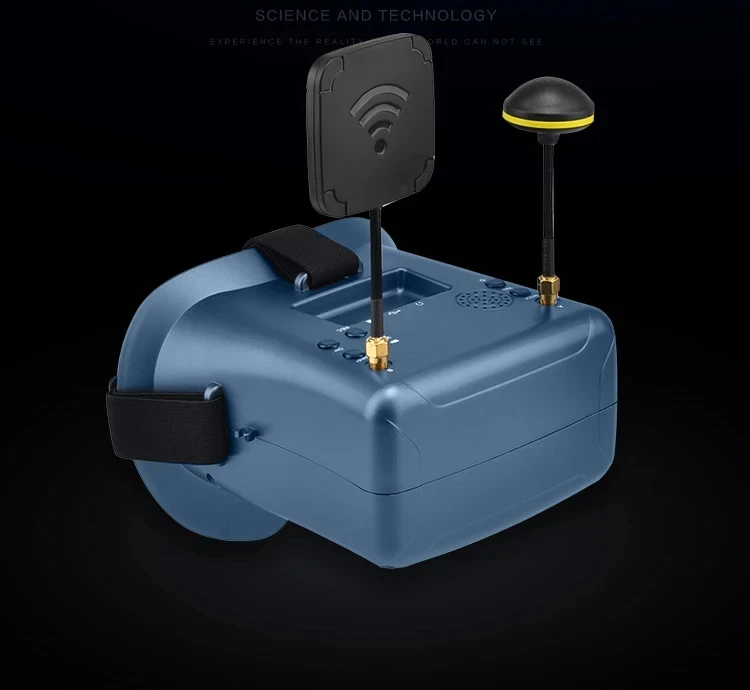

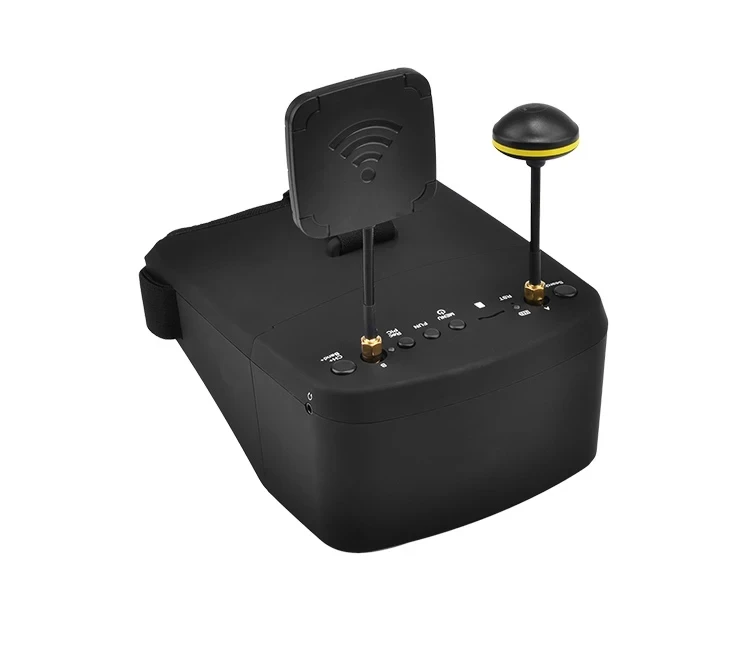

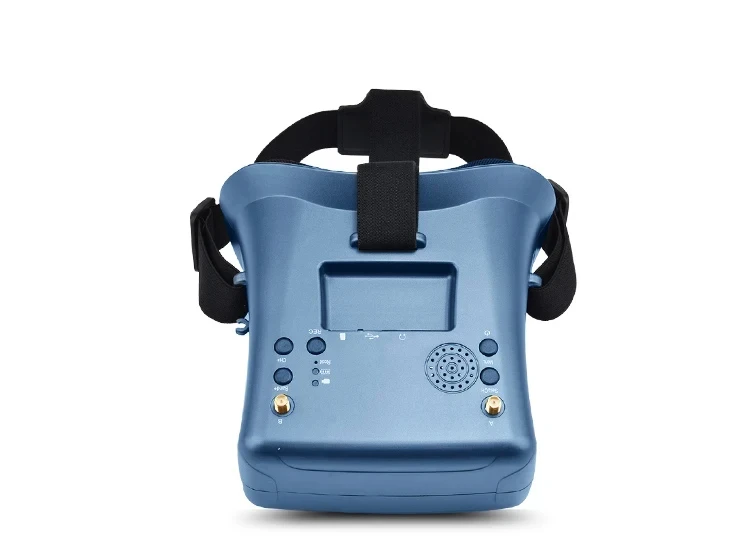

# Separable design ,5 inch screen canbe used as small monitor on radio controller or with tripod
# HD high brightness 5inch LCD specially tuned for FPV racing or Model airplane
# Buit-in super sensitiveness 5.8GHz 40ch receiver,especially with RaceBand.
# Come with advanced auto-searching function ad show yout the working frequency on screen
# Buit-in 3.7V/2000mA battery ,each full charge revive around 2 hours woking time

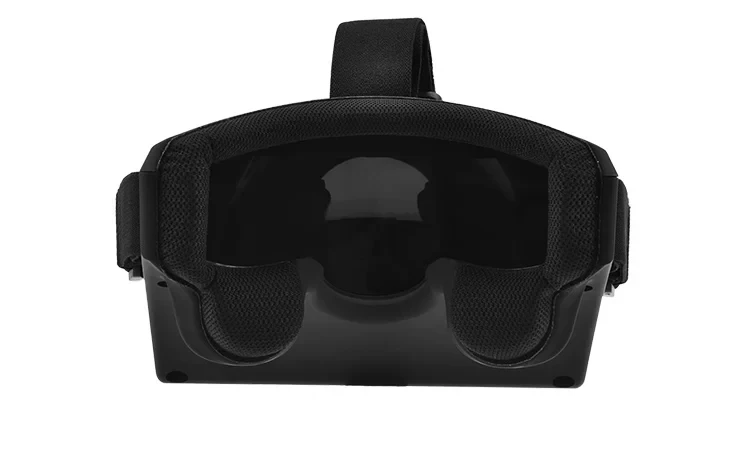

# Ergonomic design fit your faces
# super-wide visible angle up to 82 degree
# 92%transparent lens adopted ,no distort,no blur on the adage of screen;
# Light weight 375g with 2hr 2000mAh battery,RTF for any scale,racing ,Model airplane game
# 5inch 854*480px HD high brightness LCD

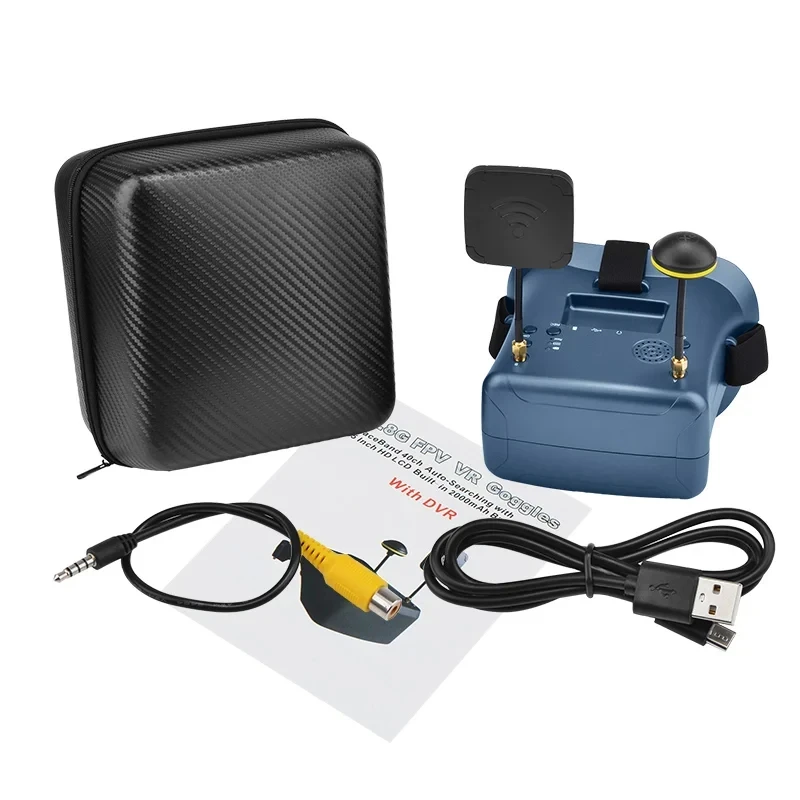

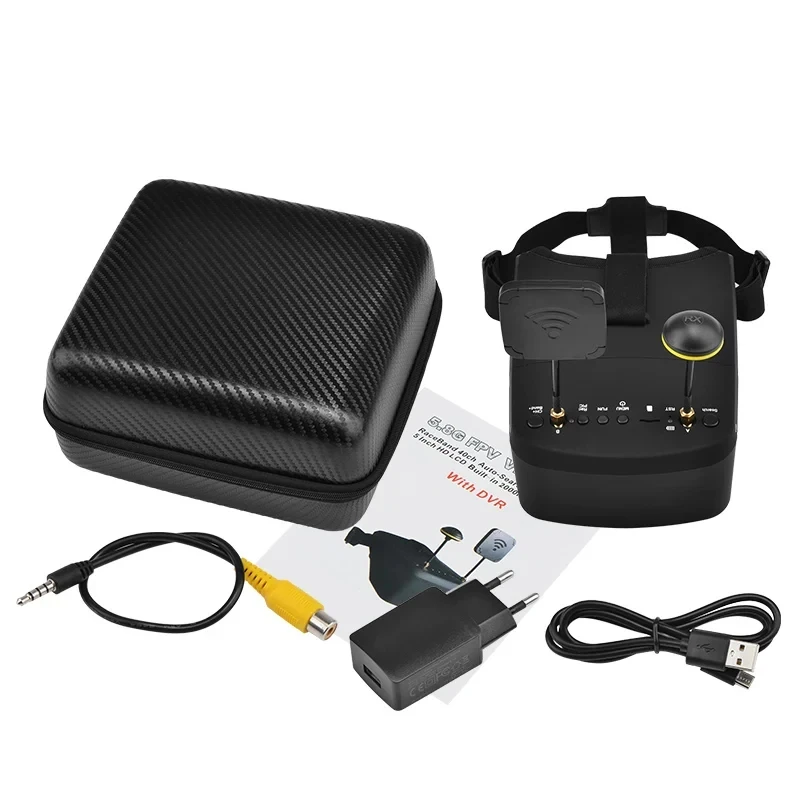

Product Specification:
Body
Dimension: CNT Size. 205*200*105, Product Size.180x146x87mm
Weight: N.W. 390g with 2hr 2000mAh battery, G.W. 690g
Belt: three-Ways adjustable belt
Screen
screen size: 5.0 inch
Screen resolution: 854*480(No blur after enlarge by the lens)
Screen brightness; 450cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 6 O’CLOCK
Lens
3x boost of the video to acquire intense feel-in-there video
92% transparent rate no distort of light

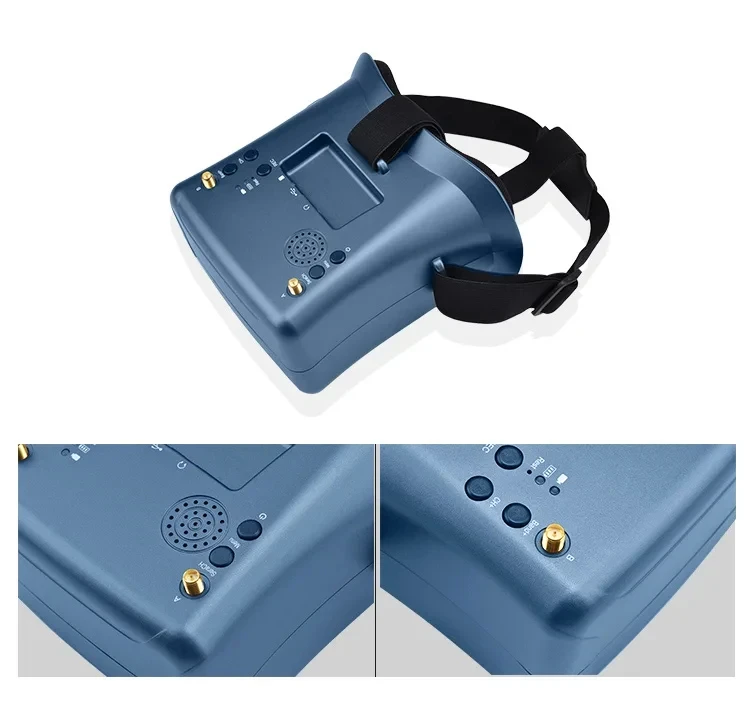

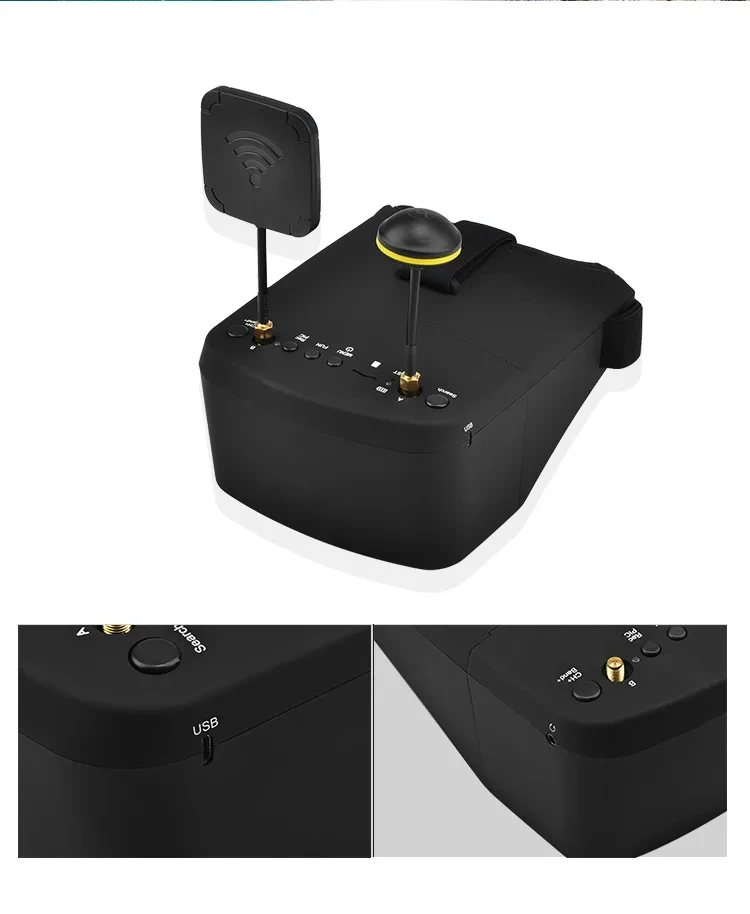

JACK
-
Input CVBS
-
Headphone sound output
-
TF Card(C10)
-
USB DC5V IN, the device operating current of 650mA@5V,built-in battery maximum charge current of 650mA@5V; if the device is working when charging, please pay attention to selecting the rated current greater than 2A/5V charging equipment.
Battery:
Built-in 3.7V/2000mAh high-capacity polymer battery, when the battery is charging, the device the red LED will light when charging is completed, here are bright green LED.
Band and Channel selection
|
CH
|
CH 1
|
CH 2
|
CH 3
|
CH 4
|
CH 5
|
CH 6
|
CH 7
|
CH 8
|
|
GROUP
|
|
A
|
5865 MHZ
|
5845 MHZ
|
5825 MHZ
|
5805 MHZ
|
5785 MHZ
|
5765 MHZ
|
5745 MHZ
|
5725 MHZ
|
|
B
|
5733 MHZ
|
5752 MHZ
|
5771 MHZ
|
5790 MHZ
|
5809 MHZ
|
5828 MHZ
|
5847 MHZ
|
5866 MHZ
|
|
D
|
5705 MHZ
|
5685 MHZ
|
5665 MHZ
|
5645 MHZ
|
5885 MHZ
|
5905 MHZ
|
5925 MHZ
|
5945 MHZ
|
|
E
|
5740 MHZ
|
5760 MHZ
|
5780 MHZ
|
5800 MHZ
|
5820 MHZ
|
5840 MHZ
|
5860 MHZ
|
5880 MHZ
|
|
R
|
5658 MHZ
|
5695 MHZ
|
5732 MHZ
|
5769 MHZ
|
5806 MHZ
|
5843 MHZ
|
5880 MHZ
|
5917 MHZ
|

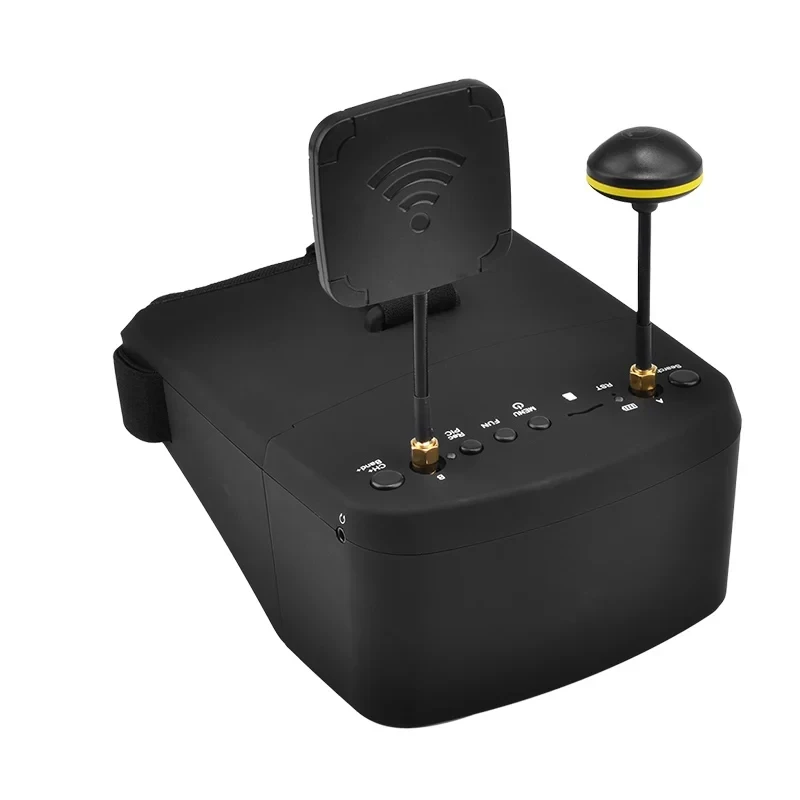

Operation Instructions
KEY
-
K1:MENU/Power
Default mode, Short press for MENU OSD; Long press 3S for Power OFF/ON; MENU pressed, this button is use as the Return.
-
K2:FUN
Default mode, Short press for switch RF MOD and AV MOD; MENU pressed, this button is use as the DOWN.
-
K3:REC/PIC
Default mode, Short press for recorder; Long press for stop recording; If recording Short press for catch pictures; MENU pressed, this button is use as the UP.
-
K4:CH+/Band+
Default mode, Short press for CH 1~8 cycles; Long press for Band+ option A,B,D,E,F,R cycle selection; MENU pressed, this button is use as the Enter.
-
K5:Search/VOL
Default mode, Short press for automatically search signals to a certain signal strength and stops on that channel; The signal is not found ,the screen show no signal; Long press for Volume control,K2->volume -,K3->volume +;
Playback
Call MENU and select Playback (Short Press K1 button to call menu, and use K4 button to select Playback mode )
Review/Replay in Playback mode
Buttons have different function in playback mode
Record file: MOV, PAL (720*576px) , NTSC (720*480px) progressive
Support up to 128G TF card (C10 recommend)
K1: Playback menu (volume control/file delete/protect)
K2: UP/ fast backward<<
K3: DOWM/ fast backward>>
K4: Select/Play/ Pause
K5: Quit Playback mode
